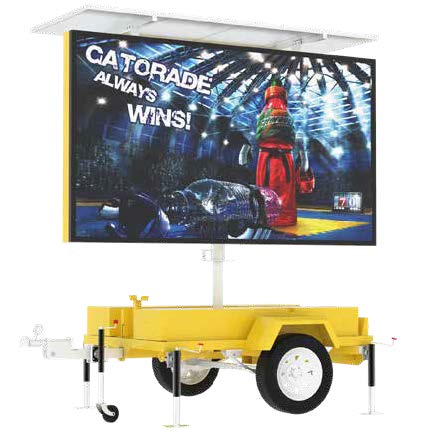

Mobile Variable Message Sign (VMS)

Mobile Variable Message Sign (Mobile VMS or Trailer VMS) are easily mobile and flexible way to communicate messages, alerts and warnings by the roadside. Ideal for informing road users of temporary roadworks, changes in traffic flow or upcoming events in the area.

The full colour Variable Message Sign (VMS) provides an excellent high resolution for messaging that is clear and legible to all road users, with the ability to display text, symbols and graphics. Every trailer is fitted with GPS tracking and is provided with an easy user-friendly control interface to instantly and remotely update the messaging displayed.

Applications:

Temporary Road Works
Events/Crowd Control
Advertising
Journey / Travel Time Information


Energy Efficient	User Friendly Control Interface	Optical Lens Design	Full Colour Screen

ENQUIRE NOW

DOWNLOADS

Mobile VMS Information Sheet

Mobile VMS Trailer - Product Leaflet

KEY FEATURES

Multiple trailer base and screen size options
EN12966 Certified for UK Highways and conforms to TSRGD
CE / VOSA compliant
4G Modem Communications
GPS tracking and removal detection
Automatic / manual / schedule brightness control
Auto shut-down function when the batteries are fully charged to prevent damages on batteries
Option of touch screen hand-held controller, radar and/or camera

Patented optical lenses design to achieve the highest optical performance
Full colour matrix LED screen, capable to show full colour images, symbols and text – or any combination
Save 20%-75% power compared to traditional VMS with DIP LED
Module design: quick and easy replacement of parts
Real-time message updates
Web based fleet control software
Attached to any vehicle for easy transportation
Anti-theft and Graffiti-proof

Technical Information

	Compact Trailer VMS	Medium Trailer VMS	Large Trailer VMS
Model	TVMS16-48×80-RGB	TVMS20-48×80-RGB	TVMS31-48×80-RGB
Description	Compact (Urben) trailer with pitch 16mm, 48×80 pixels VMS	Medium trailer with pitch 20mm, 48×80 pixels VMS	Large trailer with pitch 31mm, 48×80 pixels VMS
Standard	EN12966
Pitch Size (mm)	16	20	31
LED Type	3-in-1 SMD LEDs
Display Colour	Full Colour
Minimum Font Height (mm)	112	140	219
Display	6 lines, 13 characters/line
Module Resolution (h x w)	8 x 16 pixels		8 x 8 pixels
Module Size (h x w)	128 x 256 mm	160 x 320 mm	250 x 250 mm
VMS Resolution (h x w)	48 x 80 pixel
Display Size (h x w)	768 x 1280 mm	960 x 1600 mm	1500 x 2500 mm
Interface	RS232/RS485/Ethernet/4G
Maintenance	Front
GPS Tracking	Yes
Radar	Optional
Handheld Controller	Optional
Web Based Control	Optional
Housing Material	Black Aluminium
Mechanical Protection	IP65
Power	12V DC (Solar and Batteries)
Standard Solar Panel	2 x 110 W (Total 220 W)		4 x 110 W (Total 440 W)
Standard Battery	2 x 200 AH	3 x 200 AH	4 x 200 AH
