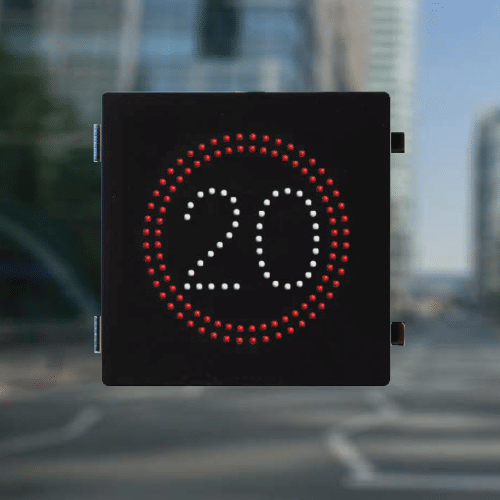

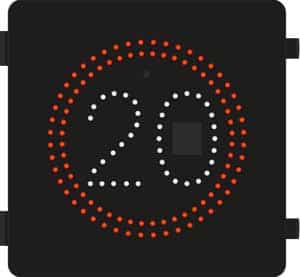

Urban Speed Limit Repeater Sign
To combat ongoing road safety issues, legislation changes are being implemented all over the UK, including reducing speed limits in busy residential areas from 30 to 20mph.
Not only is this device TSRGD compliant, but the compact and lightweight design also allows for easy installation and maneuverability, with energy efficient technology to ensure carbon footprint is minimised.
-
Energy Efficient
-
Plug and Play
-
CE Certified
-
6 Year Warranty
Product Information
- Highways approved device
- Permanent or temporary solution
- Enforce new speed limits across urban areas
- Bold and eye-catching design
- Simple and easy to use
- Optional data capture functionality
- Low maintenance
- Compact and lightweight design
- Energy efficient technology
- TSRGD compliant
- EN12966 certified
- IP56 rated
- Mains, battery and solar power options
- CE certified
| Digit/roundel size | 140/300mm |
| Enclosure dimensions (HXWXD) | 430x430x150mm |
| Trigger speeds | 20, 30MPH |
| Display on time | 0.5 – 7.5 seconds |
| Weight without batteries | 6kg |
| Rechargeable batteries | 12V – 22Ahr (Max 2 |
| Typical operating duration | 1 Battery – 45,000 triggers2 Batteries – 90,000 triggers |
| Optional extras | Data capture, Bluetooth antenna, solar powering |
A local parish council in Tetbury reported a 24% drop in the highest speed on their targeted road within just one month of installation.The 40mph road had motorists speeding at a dangerous 61.5mph, but with an eye-catching Vehicle Activated Speed sign, this top speed reduced down to 45.7mph after 25 days of being in use.
Although the results collected from the signs cannot be used to prosecute speeding motorists, the reports and data are often used by councils and Local Highways Authorities to help set-up speeding enforcement procedures.
| Date | Average Speed |
| 29th August | 38.6 mph |
| 1st September | 39.0 mph |
| 7th September | 38.8mph |
| 17th September | 28.7 mph |
| 23rd September | 28.8 mph |
| Date | Top Speed |
| 29th August | 61.5 mph |
| 1st September | 61.8 mph |
| 7th September | 60.4 mph |
| 17th September | 46.6 mph |
| 23rd September | 45.7 mph |
“The unit is proving very successful in calming traffic through the village. The flashing signal clearly and effectively reminds drivers of the prevailing speed limit, and the data gathering function is useful in determining which sites within the village benefit most from its deployment. The unit is sufficiently portable to enable it to be rotated between separate locations on a regular basis. We are also planning to liaise with the local constabulary over the summer months, and provide data from the unit in order to help them target the most effective periods to deploy mobile enforcement cameras.”
– Kevin Beck, Parish Council in Tetbury
Analyse traffic data and speeding trends to make the most of your speed signs
