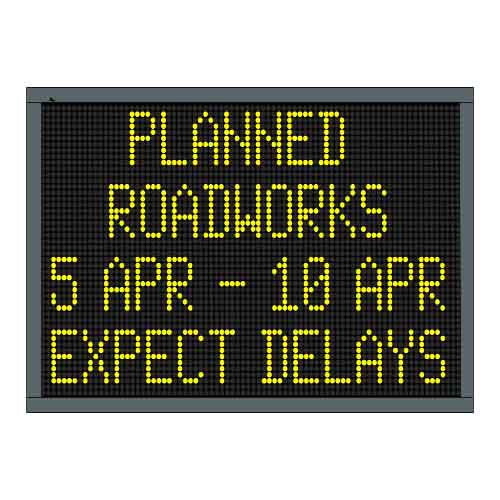

Variable Message Sign (VMS) – Urban

• Energy Efficient: Variable Message Signs are designed with energy-efficient technology, minimising power consumption for sustainable and cost-effective operation.
• Reliable LEDs: Equipped with dependable LED technology, these signs ensure consistent and clear message display, enhancing both visibility and communication.
• Programmable with various messages: Variable Message Signs offer versatility by being easily programmed to display a range of messages, adapting to changing traffic conditions and communication needs.
• Full-Colour Screen: Featuring a full-colour matrix display provides excellent resolution for clear messaging that is legible to all road users. This effectively captures attention and conveys important information.
• UKCA/CE certified: Variable Message Signs are UKCA/CE certified, assuring compliance with European safety and quality standards for reliable and compliant operation.
• IoT compatible: These signs are compatible with Internet of Things (IoT) technology, enabling seamless integration with smart traffic management systems for efficient and remote operation.
• HD viewing: With high-definition viewing capabilities, Variable Message Signs offer clear and sharp images in order to ensure accurate communication of messages to road users.
• Monitoring and Error Reporting: Variable Message Signs come with monitoring capabilities and error reporting systems, enabling real-time performance tracking and prompt issue identification for reliable operation.
• Intelligent Optical Lens: Equipped with intelligent optical lenses, these signs optimise light distribution for maximum visibility and legibility from various angles.
• RCS Compatible: Variable Message Signs are compatible with RCS (Roadside Control System), allowing seamless integration and synchronisation with existing traffic management systems for efficient and coordinated traffic control.

What You Can Use Our Variable Message Sign For

Highways Traffic Management

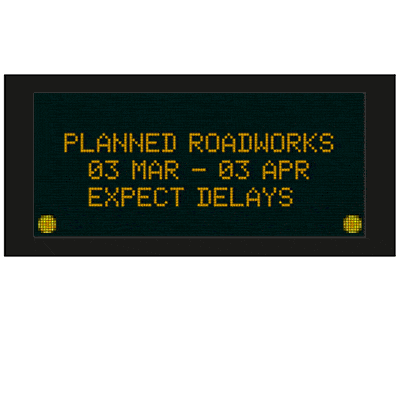

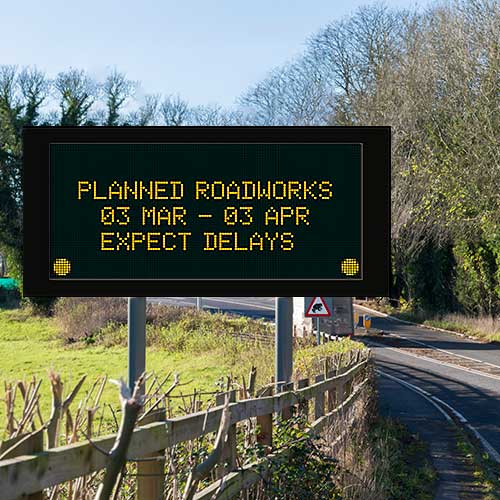

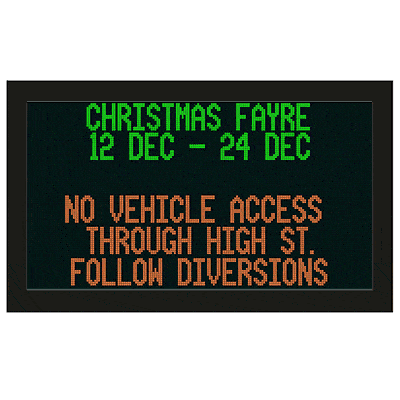

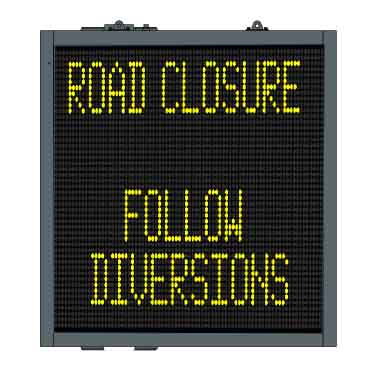

VMS signs are essential for highway traffic management, providing real-time updates about traffic conditions. Messages commonly used on VMS displays include lane closures, diversions, and other relevant information to guide drivers and ensure efficient traffic flow.

Road User Information

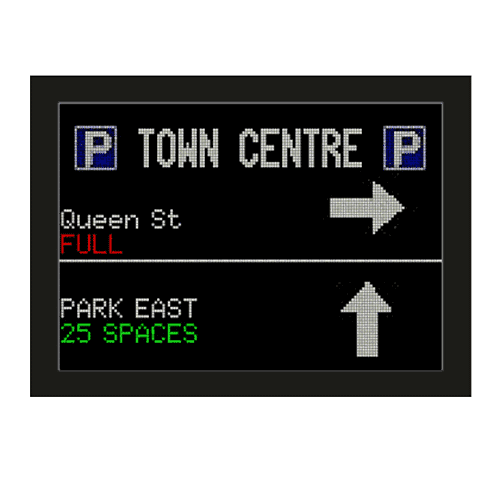

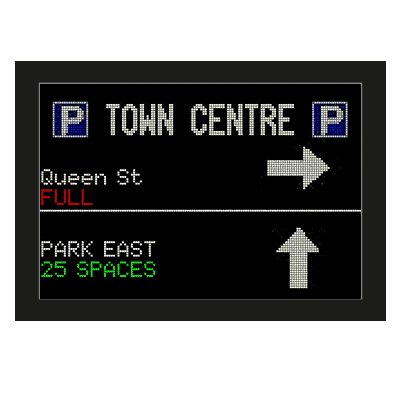

VMS signs offer valuable information to road users, including directions to key destinations, upcoming exits, rest areas, and service stations, contributing to safe and informed navigation.

Hazard Warning

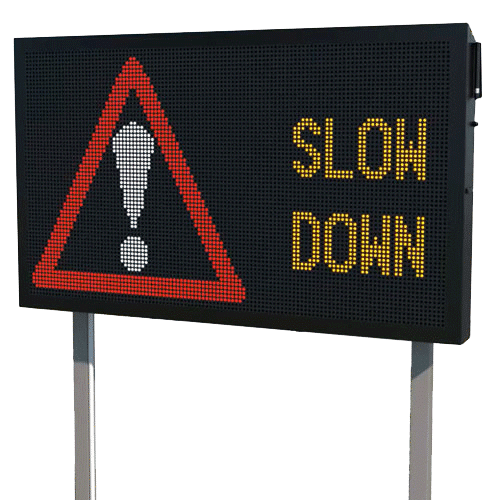

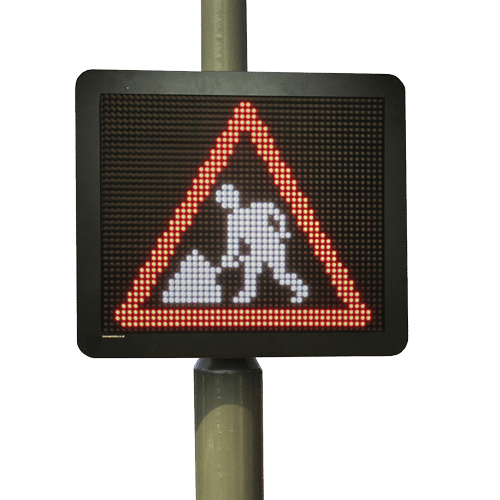

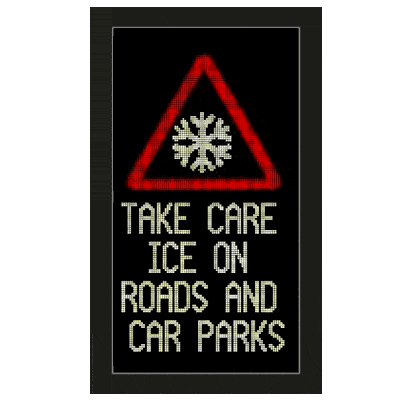

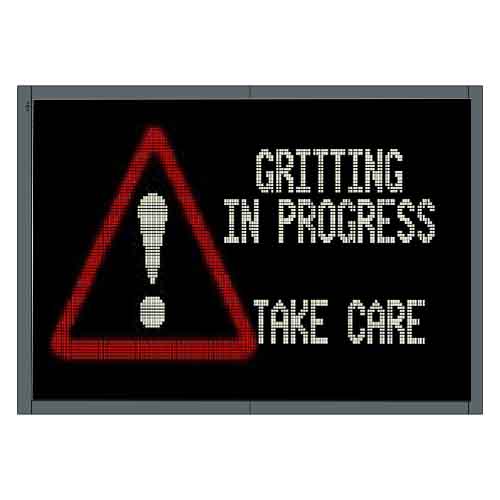

VMS signs play a critical role in hazard warning by displaying alerts about accidents, road closures, adverse weather conditions, and other potential dangers. Eye-catching LED symbols and messaging enhances driver awareness and increases overall road safety.

Pedestrian and Road User Information

VMS signs are used to convey information to pedestrians and other road users, such as crosswalk locations, school zones, and temporary pedestrian routes, promoting safety and efficient movement.

Traffic Calming

VMS signs can be utilised for traffic calming measures, displaying speed limit reminders, cautionary messages, or other visual cues to encourage drivers to reduce speed and enhance safety, particularly in residential or pedestrian-heavy areas.

Industrial Sites

VMS signs are valuable tools for managing traffic and communicating information in industrial sites, including quarries, construction sites, loading bays, and other work areas, ensuring the safety of workers and vehicles.

Smaller Variable Message Sign offerings

For VMS displays on a smaller scale, for use on industrial sites or large commercial sites.

Two standard sizes available:

DIA16
Display Size: 768 x 640mm (w x h)
Pixel Pitch: 16
Display Resolution: 48 x 40 pixels
Full Colour
IP65
RS232/RS485/Ethernet/4G

DIA20
Display Size: 640 x 640mm (w x h)
Pixel Pitch: 20
Display Resolution: 32 x 32 pixels
Full Colour
IP65
RS232/RS485/Ethernet/4G

How To Install a Variable Message Sign

1: Obtain Necessary Permissions

1. Firstly, contact your local council or relevant highway authority to obtain the necessary permits and permissions for installing a vehicle-activated speed sign. They will provide information about any regulations, requirements, and approvals needed.

2: Choose an Appropriate Location

1. Select a suitable location for the speed sign installation. Consider areas with a history of speeding or high traffic density, such as school zones, residential areas, or other places where speed reduction is crucial.

3: Install Mounting Brackets

1. Use a suitable drill to mount the brackets securely onto a stable structure (such as a lamp post or a dedicated signpost). Follow manufacturer guidelines for spacing and height requirements.

4: Mount the Sign to the brackets

1. Attach the sign to the mounting brackets using the provided screws and tools.

5: Install Solar Panels and Battery

1. Attach the solar panels to the top of the speed sign.
2. Connect the solar panels to the control unit and battery according to the provided instructions.

6: Connect Control Unit

1. Connect the radar unit, solar panels, and battery to the control unit as per the wiring diagram.

7: Test and Configure

1. Power on the system and perform a thorough test to ensure all components are functioning correctly.

8: Inform Authorities and Maintenance

1. Notify local authorities and relevant stakeholders once the installation is complete and the system is operational.
2. Establish a maintenance schedule to regularly inspect and service the speed sign in order to ensure it remains functional and accurate.

Remember that this is a general guide, and specific requirements may vary based on the model of the speed sign, local regulations, and unique installation conditions. Always consult with professionals, local authorities, and experts to ensure a safe and compliant installation.
